Repairing Ford Fiesta 2002-08 Wiper Motor Linkage

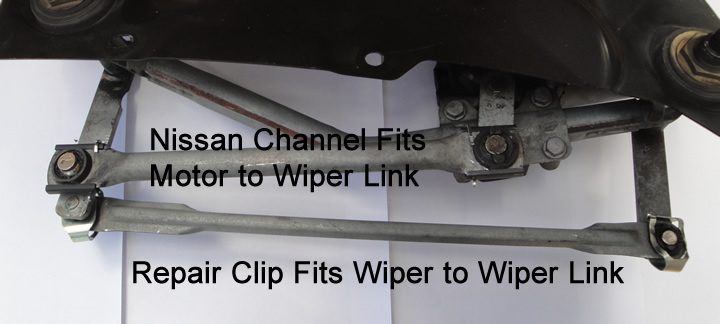

If the joint falls off and you lose both wipers you need a Nissan Repair Channel ATM-NI see below
If the joint falls off and you lose one wiper you need a Repair Clip

Ford Fiesta Wiper Linkage

Our Nissan Repair Channel ATM-NI can be used to repair the joints from the motor to the wiper, you will need a junior hack saw, flat file and a round file.

1. Using the hack saw remove the sides of the socket, this will allow the repair channel to slide on.



2. If repairing the outer joints (wiper end) you will also need to remove 1mm from the bottom.

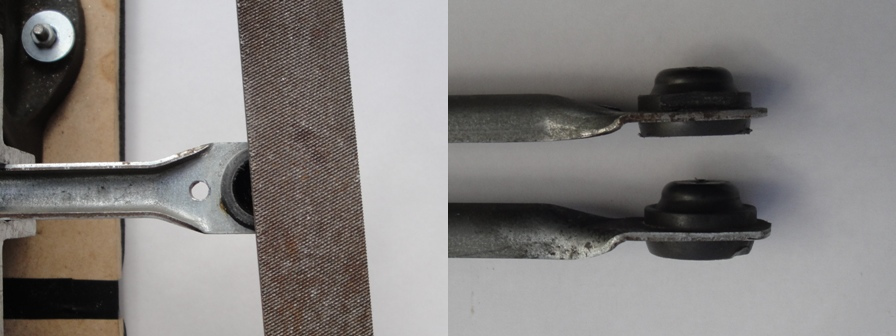

3. This can be done using a flat file. Just file a small amount at a time until the channel just slides on.

zafira A wiper linkage


4. The repair channel will need to filed out to 13.5mm using a round file.

wiper linkage


5. Socket and channel prepared. 6. Lubricate the ball and socket before refitting

wiper linkage

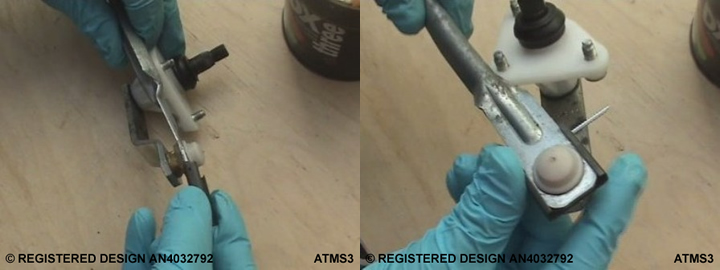

7. Slide on the Repair Channel. 8. Insert the split/cotter pin. (Nissan K12 pictures)

wiper linkage


9. Bend over the top out of the way. 10. Joint repaired.

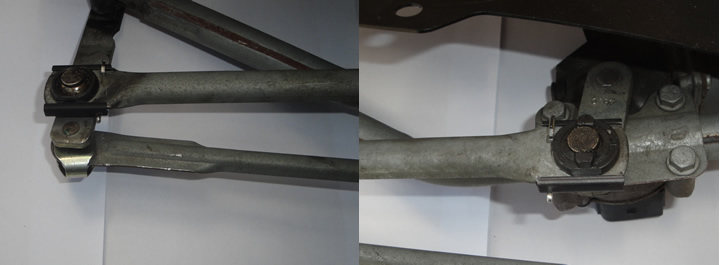

Repair Fiesta wiper linkage
