Ford Diagnostic Socket Location 16 pin EOBD/OBD

Cougar, Fiesta  98-04 Focus, Mondeo 93-00
Drivers side above pedals may be under flap

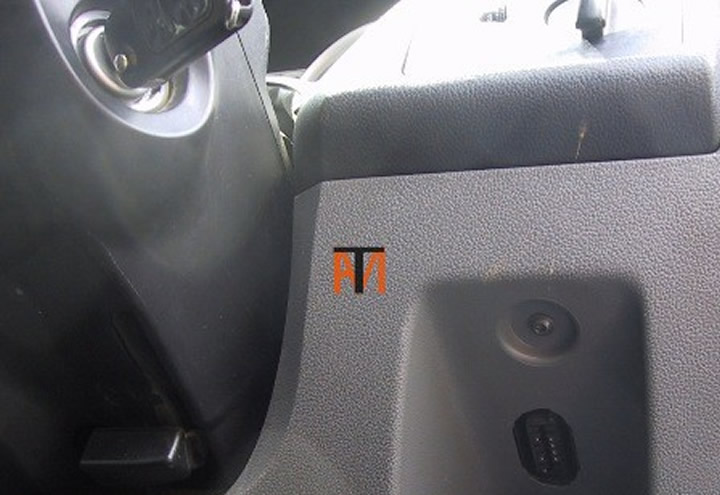

Focus 05-11 In small glove box above pedals see picture below

Focus_05-11_Diagnostic_Socket_Location

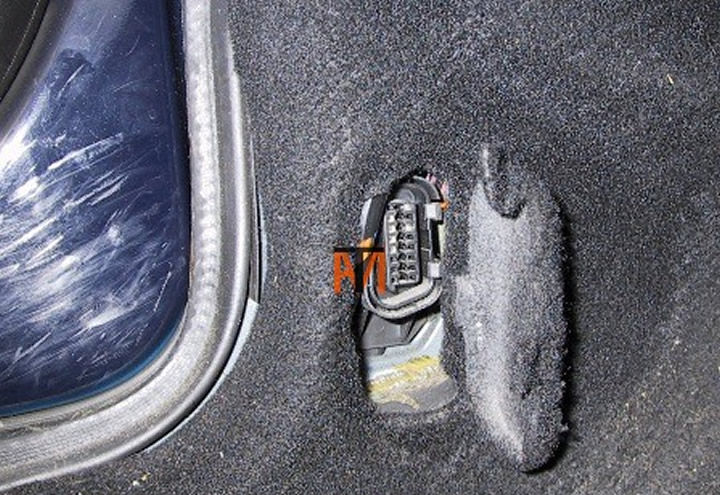

Courier, Escort, Fiesta 96-02 and KA Passeneger kick panel under flap see picture below

KA_Diagnostic_Socket_Location



Mondeo 00- above pedals pulls down
