Vauxhall Opel

Agila / Astra / Corsa / Frontera / Meriva / Signum / Tigra / Vectra / Zafira / Insignia / VXR

Worn Wiper Linkage click here for cheap repair

Non Start Warning Light Flashing

Non start, spanner or engine management light flashing on a Vauxhall, the microchip (immobilizer) in the key has been not recognised. Has the remote control key fob's been apart if so you have probably lost the microchip see picture.

Spanner Light

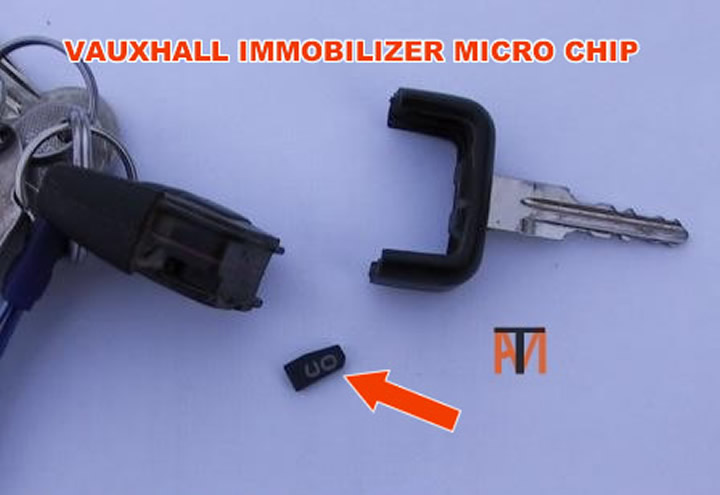

Vauxhal Immobilizer Micro Chip

Here you can see the microchip that falls out when Vauxhall remote key opens. If chip can’t be found, car will have to be taken to dealer to new chip fitted and coded to car .

BURNING SMELL NON START

Non start smell of burning under bonnet, the starter motor has burnt out due to the ignition switch seizing and not returning to run position, this leaves the starter motor running and burns it out. Try WD40 to un-seize lock, if not replace or will burn out new starter motor.

Steering Lock Jammed

Steering lock jammed particularly in hot weather, lubricate with WD40 then with key removed use a rubber hammer hit the middle of the lock (Round piece key goes in) this should jar lock and un-jam. After two or three tries and the lock should un-jam. Take load off lock when trying by turning steering wheel.

Jammed Steering Lock

Rattling Engine Management Light On

Engine running rough, rattling and engine management light on, check oil level is not low, this will cause low oil pressure which will make hydraulic tappets rattle, the knock sensor (pinking sensor) will hear this and put engine management light on.

Diesel Smoking

Rough running (smoking if diesel ) can be caused by EGR valve (Exhaust Gas Recirculation) sticking open try removing pipe or wires and tapping valve to un-jam. More on Vauxhall EGR's

Corsa 2000-03 No Gauges or Dash Board-Lights

Corsa 2000-03 no gauges or dash board-lights probably won’t start, push on gauges, everything should come back and car starts. Bad connection on the back instruments cause immobilizer to cut in.

Early Frontera Non Start

Check if the interior light switch is working properly (e.g. no light) the immobilizer will not disarm if it does not, clean switch on door pillars with WD40 to light works, lock and unlock car and retry to start.
