Renault Diagnostic Socket Location 16 pin EOBD/OBD

Clio 01-05 under ash tray in centre console

Renault_Clio_Diagnostic_Socket_Location



Clio 05- under small flap in centre of dash see picture

Renault_Clio_05_Diagnostic_Socket_Location

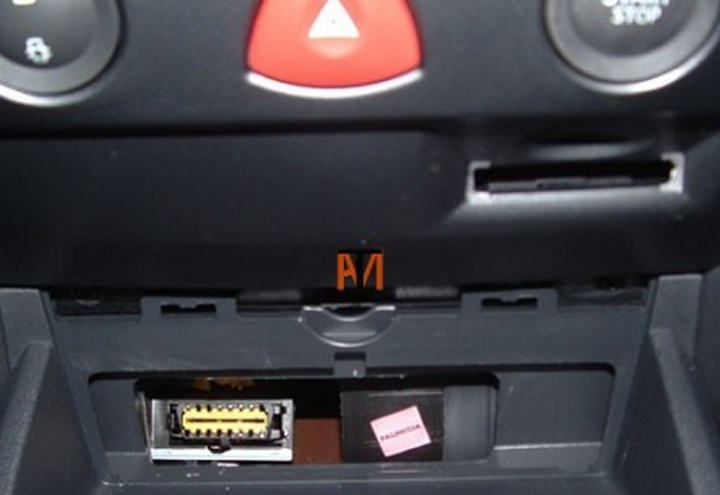

Megane II under small flap in centre console

Renault_Megane_II_Diagnostic_Socket_Location



Scenic 03-09 remove centre arm rest/console held by screws socket located under this see picture

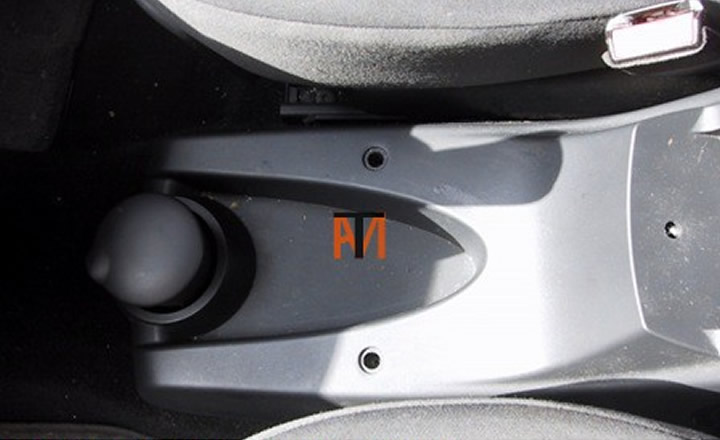

Renault_Scenic_Diagnostic_Socket_Location

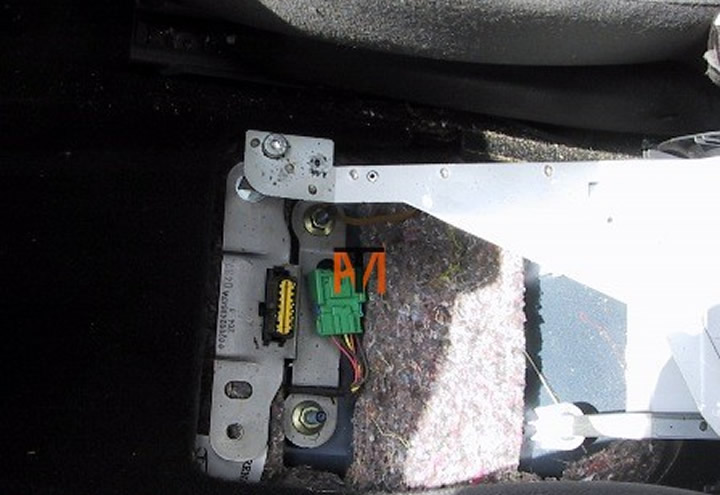

Renault_Scenic_03-09_Diagnostic_Socket_Location



Laguna 01-07 under ash tray in centre console
