Wiper linkage and our products have change since I wrote this page, please visit linkage size and I will try to help you.

What will the Repair Clip fit?

wiper_linkage_repair_clip

The recommended maximum ball joint diameter is 14mm and a collar under the ball of less than 9.5mm.
It is possible to file the clip to fit a larger collar (up to 11.5mm) but we do not recommend it as it is not always successful, please see last image.

If you have a larger linkage (16mm ball joint) see our repair plate

What makes and models we know it fits.

ball_joint

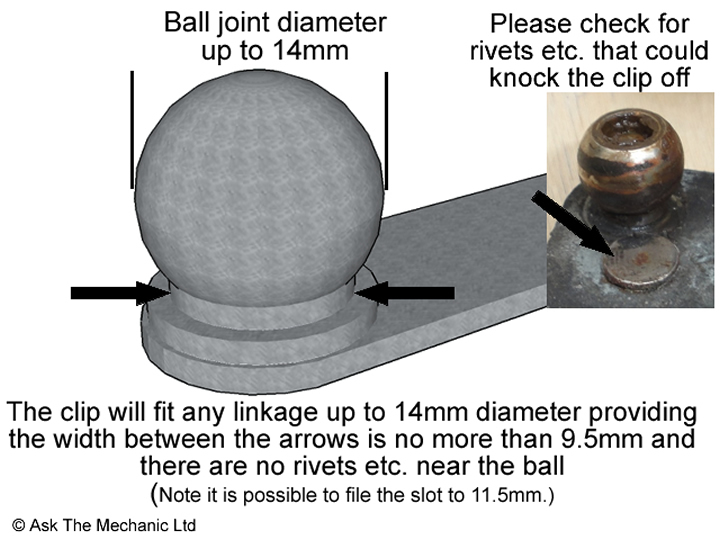

Measuring the Ball Joint

The easiest way to measure the ball joint is to cut a cardboard/plastic template with a 9.5mm slot, if it goes under the ball the repair clip will fit.
It can be filed out to 11.5mm see below.

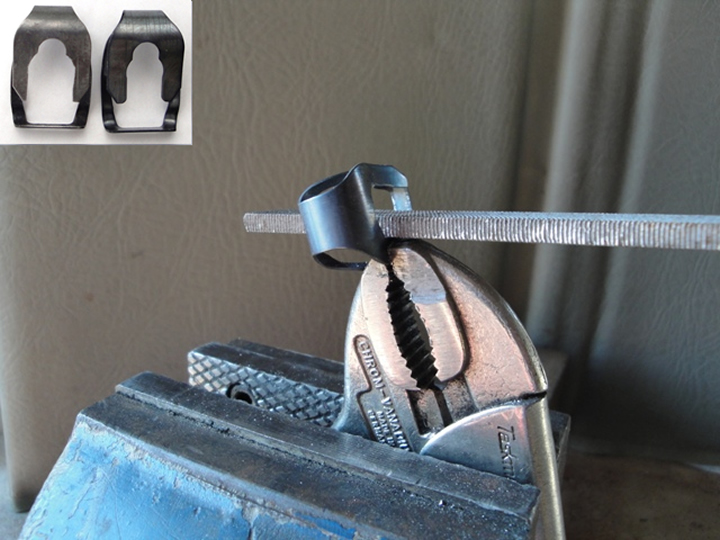

Filing the clip

The slot can be made larger using a hand file or Dremel. It can be held using mole grips and a vice.

Filling-Clip Visit our shop
