Repairing Audi Q7 Wiper Motor Linkage Typ 4L: 2007–2015

watch video

The ATM-ZM Repair Channel will fit any of the joints of a Q7 but will need some work to the link before it will slide on.

Repairing The Long Link

If repairing the joint on the long link you will need to remove a small amount of metal from each side of the link before the channel will slide on.

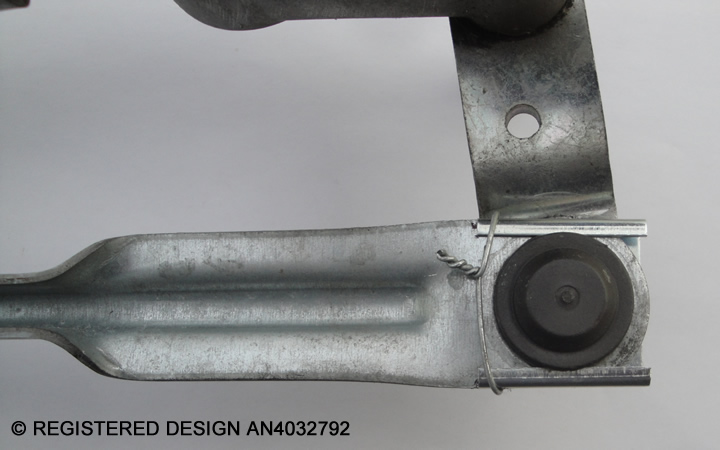

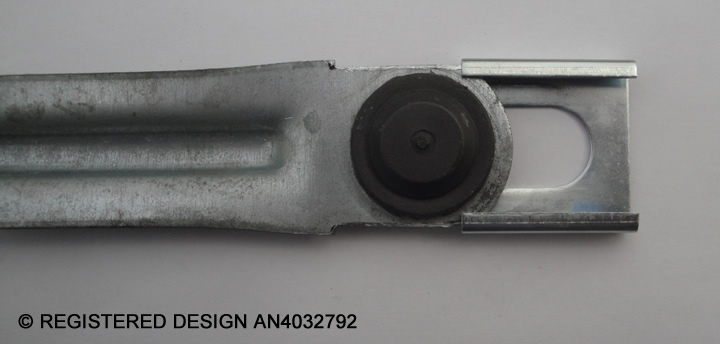

Repaired Q7 Long Wiper Link


Short Motor Link

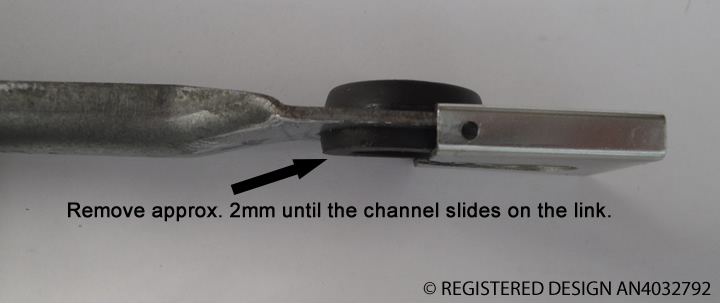

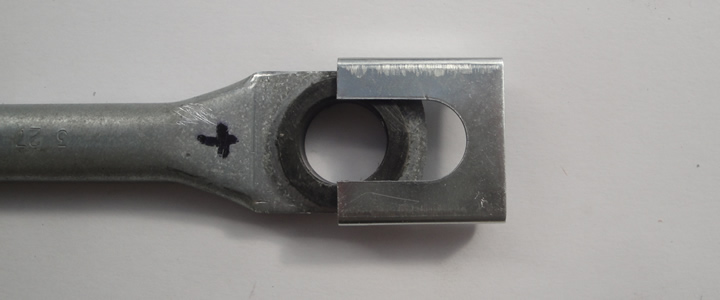

You will need to file approximately 2mm from the plastic socket before the Repair Channel will side on, I would recommend marking the under side of the link (see + mark) before removing it to avoid confusion.(Note example picture)

Ford-C-Max-wiper-link Ford-C-Max-wiper-link

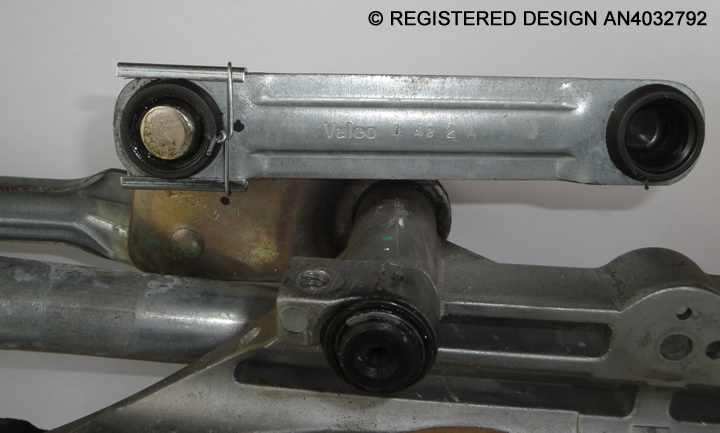

Repaired Q7 Short Motor Link

It can now be cleaned up and fitted following the instructions below

Audi Q7 wiper linkage

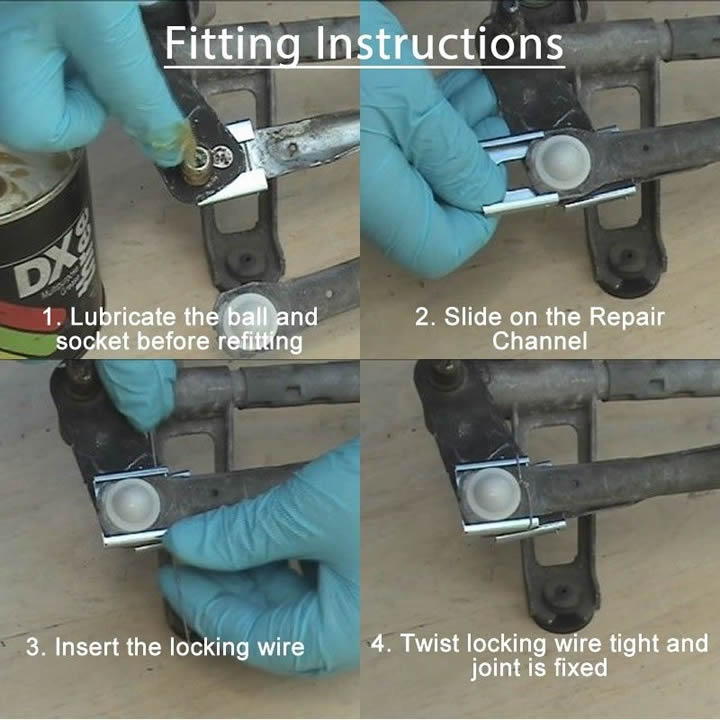

Fitting Instruckions

Fitting instructions
